Welcome to Multi-UVTools. This application helps you manage your Quansheng radio.
Getting Started
Connect your radio via USB. Baud rate: 38400 (Default) / 115200 (Specific firmwares).
Available Features:
- Tools: EEPROM backup/restore, calibration management, and HEX view
- Flash: Flash firmware for UV-K5/K6/5R and UV-K5 V3/K1 radios
- Channels: Read, edit and write channels to the radio
- Settings: Edit basic settings, DTMF contacts, and FM radio frequencies
- Mirror: Mirror the radio display in real time
- SMR: Short message radio for sending and receiving SMS frames
Boot Mode:
To flash firmware, connect the radio in boot mode by holding PTT while turning on the power.
⭐ Complete Documentation of the Quansheng UV-K5 — Wiki by Ludwich66
An exceptional work of documentation and reference.
Open Source Project
This website is available on my GitHub (spm81) Matoz.
The code is open so that everyone can contribute to and improve the site. You can also ask to add your custom firmware or simply make pull requests on GitHub, and I will then add them to my code.
I hope you enjoy my work! 🚀
UV-K5/K1 TOOLSET
Tools to manage your radio.
Connect the radio to backup, restore, firmware update, channel editing and basic settings.
Memory: 8 KB EEPROM | 200 Channels | External EEPROM
EEPROM backup
Save the radio's current configuration.
The file will be downloaded as .bin.
Restore EEPROM
Restore a backup file to the radio.
Dump Calibration
Save the calibration area (0x1E00-0x2000).
Calibration file will be downloaded as .bin.
Restore Calibration
Restore calibration data from a backup file.
Expected size: 512 bytes.
Emergency Calibration Restore Tool
Restore calibration from pre-loaded files.
⚠️ Warning: Use only in case of emergency (radio with password, locked radio, or misconfigured radio) and/or only if you do not have the calibration file for your radio.
Select a model to restore its default calibration.
Advanced Tools
HEX View
CHANNELS TOOLS
Channel editor.
Read, edit and write channels to the radio.
-
| # | Name | RX Freq | TX Freq | Mod | BW | Power | RX Tone | TX Tone | Step | Scrambler | List |
|---|
SETTINGS TOOLS
Basic settings editor.
Read and write settings from the radio.
⚠️ Work in progress. Do not use yet.
-
Firmware Profile
Select the firmware profile to use for settings.
DTMF Contacts
Manage DTMF contacts stored in the radio (EEPROM: 0x1C00 - 0x1D00).
| # | Name (8 chars) | DTMF ID (0-9, A-D, *, #) |
|---|
Radio (FM Frequencies)
Quick frequency memory slots (EEPROM: 0x0E40 - 0x0E68).
| # | RX Frequency (MHz) |
|---|
Select a firmware profile and click "Read Settings" to load settings from your radio.
MIRROR TOOL
Display mirror
Mirror the radio display in real time.
No radio connected.
SMR TOOL
SMR
Short message radio for sending and receiving SMS frames.
Select the message app in the radio (F+M) to use this tool.
No radio connected.
Messages
Use Enter to send.
RECOVERY TOOL
🔧 Unbricking UV-K5 V1
Restore a bricked UV-K5 V1 using ST-LINK V2 and OpenOCD
⚠️ F4HWN 4.3 Fusion 🔥 Edition is ONLY compatible with UV-K5 V3 and UV-K1. When flashed onto a UV-K5 V1, it causes a complete brick. Fortunately, the UV-K5 V1 can be fully restored using OpenOCD and a ST-LINK programmer.
❌ When do you need this?
Your UV-K5 V1 may be bricked if:
- ❌ The radio does not power on anymore
- ❌ DFU mode is unavailable (PTT + Power ON doesn't work)
- ❌ No LED activity at all
- ❌ Flashing tools cannot detect the device
This usually happens when you flash a UV-K5 V1 with firmware meant for UV-K1 or UV-K5 V3 (like F4HWN Fusion 🔥 Edition).
📋 Requirements
- 🔌 ST-LINK V2 programmer (original or clone)
- 🔗 4 Dupont jumper wires
- 🔧 Small screwdriver to open the radio
- 💻 OpenOCD installed on your computer (Windows / macOS / Linux)
📥 Installing OpenOCD
Verify installation: openocd --version

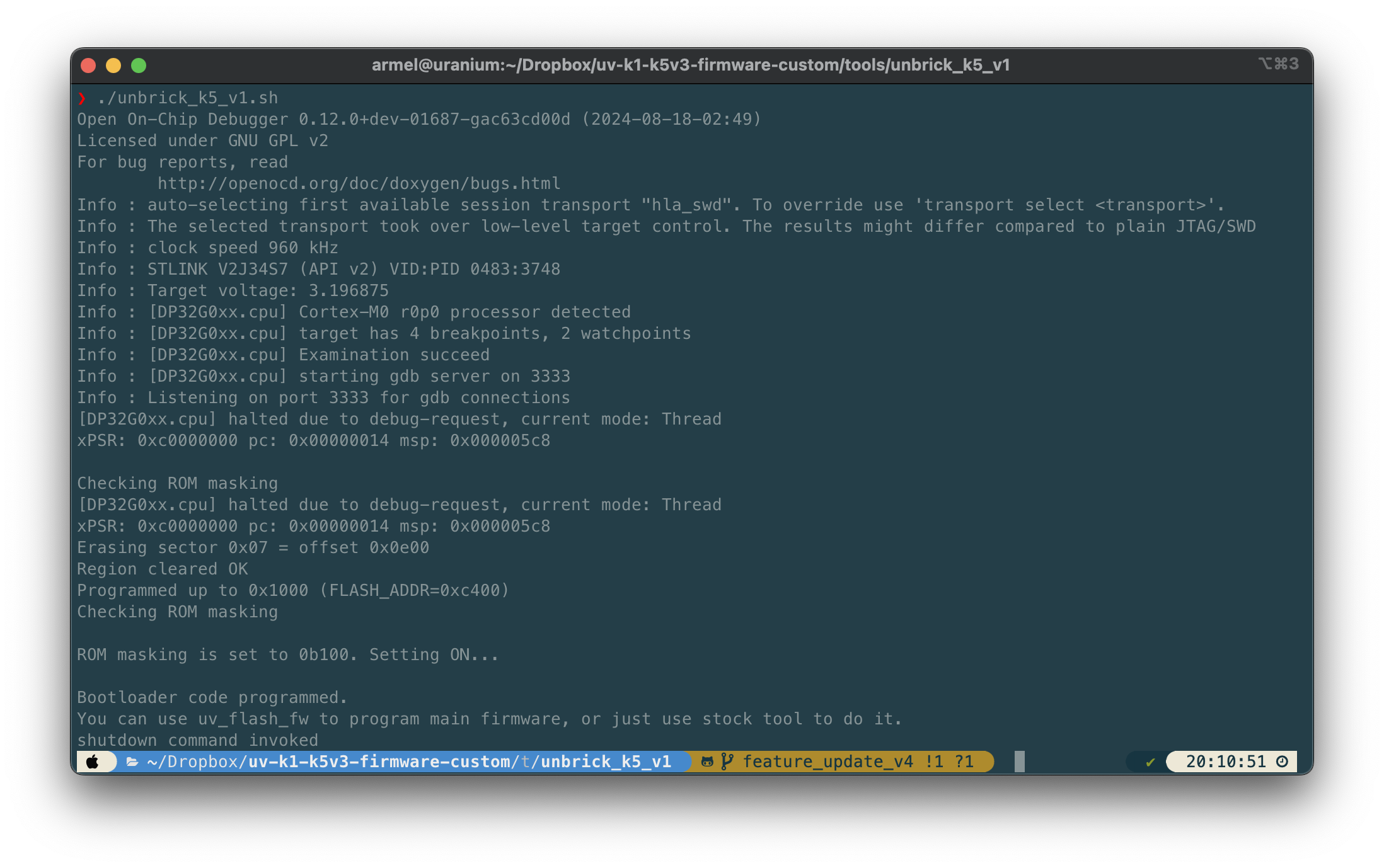

OpenOCD successful output
🔌 SWD Connection Points
The radio must be opened to access the front side of the PCB. Connect the ST-LINK V2 to these pins:
| Signal | UV-K5 V1 Pad | ST-LINK Pin |
|---|---|---|
| GND | GND pad | GND |
| SWCLK | SWCLK pad | SWCLK |
| SWDIO | SWDIO pad | SWDIO |
| 3.3V | VCC pad | 3.3V |

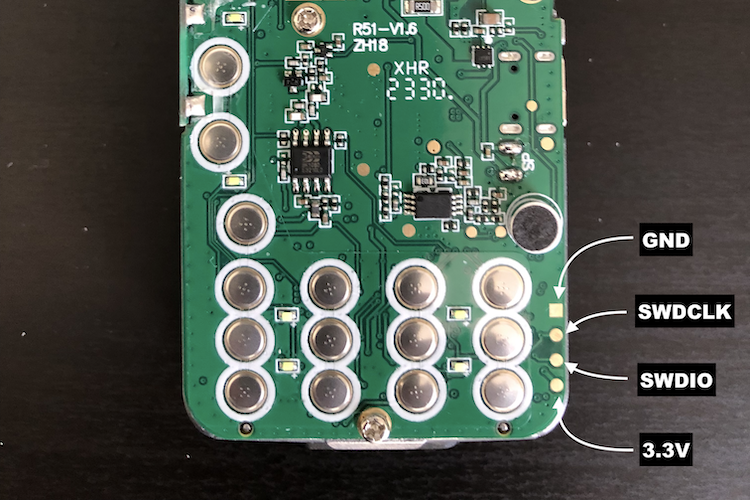

📍 PCB Connection Images

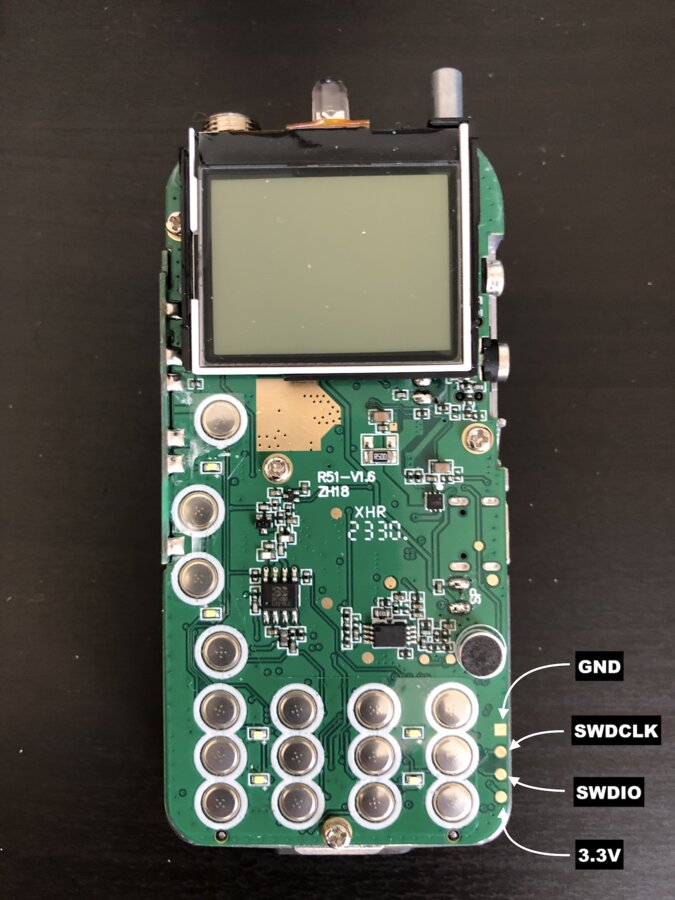

SWD Pinout Location

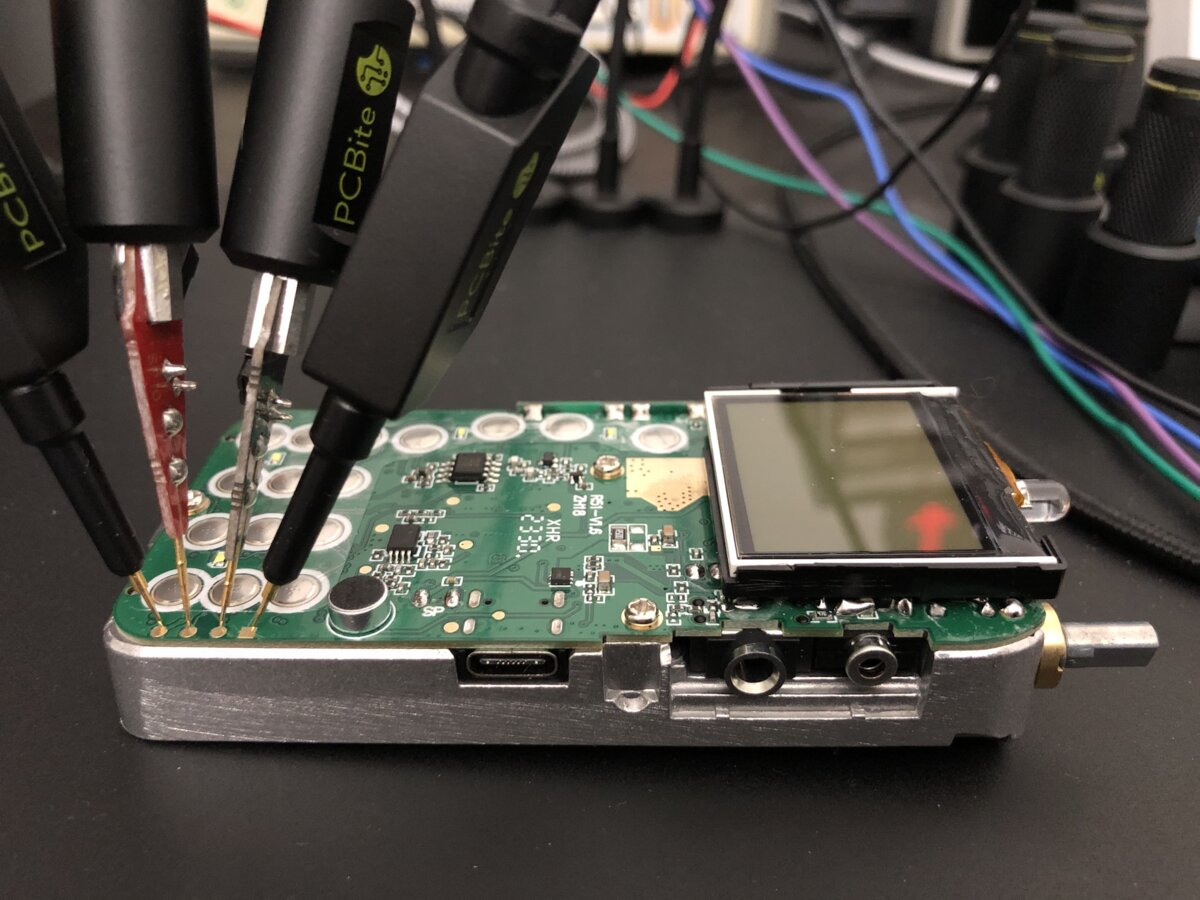

PCB Connection Points
📦 Download Unbrick Toolkit
Download the complete toolkit containing bootloader, OpenOCD configs, and helper script:
Or download individual files:
⚡ Unbrick Procedure
Step 1: Connect the ST-LINK
- Connect the ST-LINK pins to the SWD pads:
- 3.3V → 3.3V
- SWDIO → SWDIO
- SWCLK → SWCLK
- GND → GND
- Plug the ST-LINK into your computer
- Power on your UV-K5 V1 (normal mode, without battery)
Step 2: Flash the Bootloader
From the unbrick_k5_v1 directory:
✅ Step 3: After Successful Flash
If no errors appear, the bootloader has been successfully restored:
- Disconnect and remove the ST-LINK from your UV-K5 V1 SWD port
- Reinstall the battery
- Power on the radio in DFU mode (hold PTT + Power ON)
✅ The device should now start correctly in DFU mode again. You can then flash stock firmware, or the F4HWN firmware for UV-K5 V1 (not the Fusion 🔥 Edition).
🎬 Video Demonstration
Watch the complete unbrick process in action. The video is included in the toolkit download.
📺 Video Tutorials
If you're new to ST-LINK, OpenOCD, or SWD debugging, these videos will give you a clear visual overview:
ℹ️ These resources are not mandatory, but they can make the procedure much easier to follow.
⚠️ Important Notes
- This procedure is for UV-K5 V1 only
- UV-K5 V3 and UV-K1 use different firmware and don't need this
- Opening the radio may void warranty
- Work carefully with the PCB connections
- Double-check all wiring before powering on
- Never connect battery while ST-LINK is connected
This procedure requires opening the device and directly manipulating its microcontroller over SWD. Incorrect use may permanently damage the radio. Proceed at your own risk.
❤️ Guide and tools by F4HWN (Armel) • Windows version by @dguimaraes88
